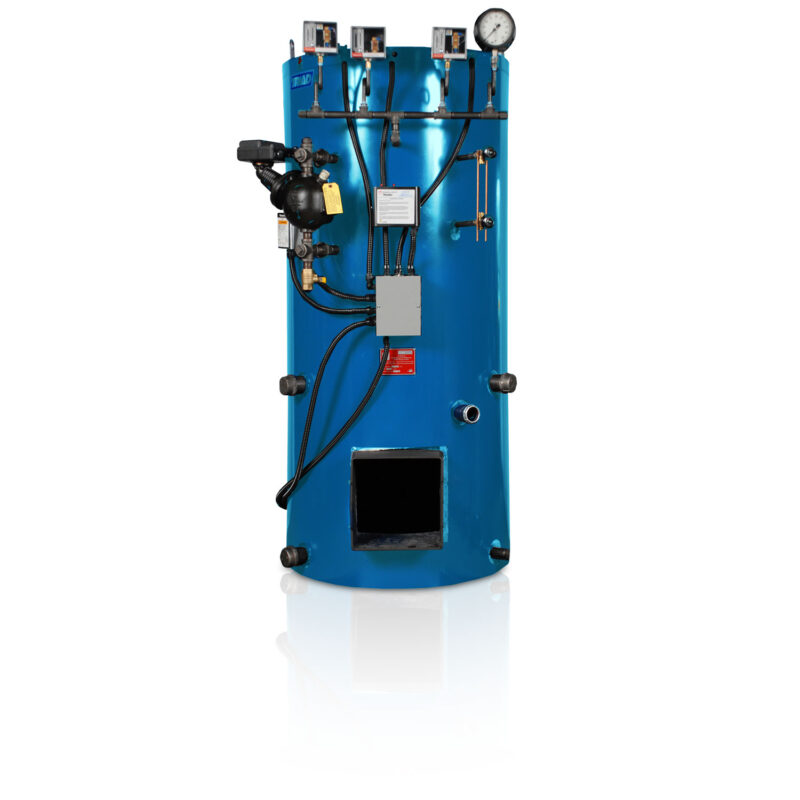

Series 900 Steam Low Pressure Boiler

Series 900 Steam Low Pressure Boiler

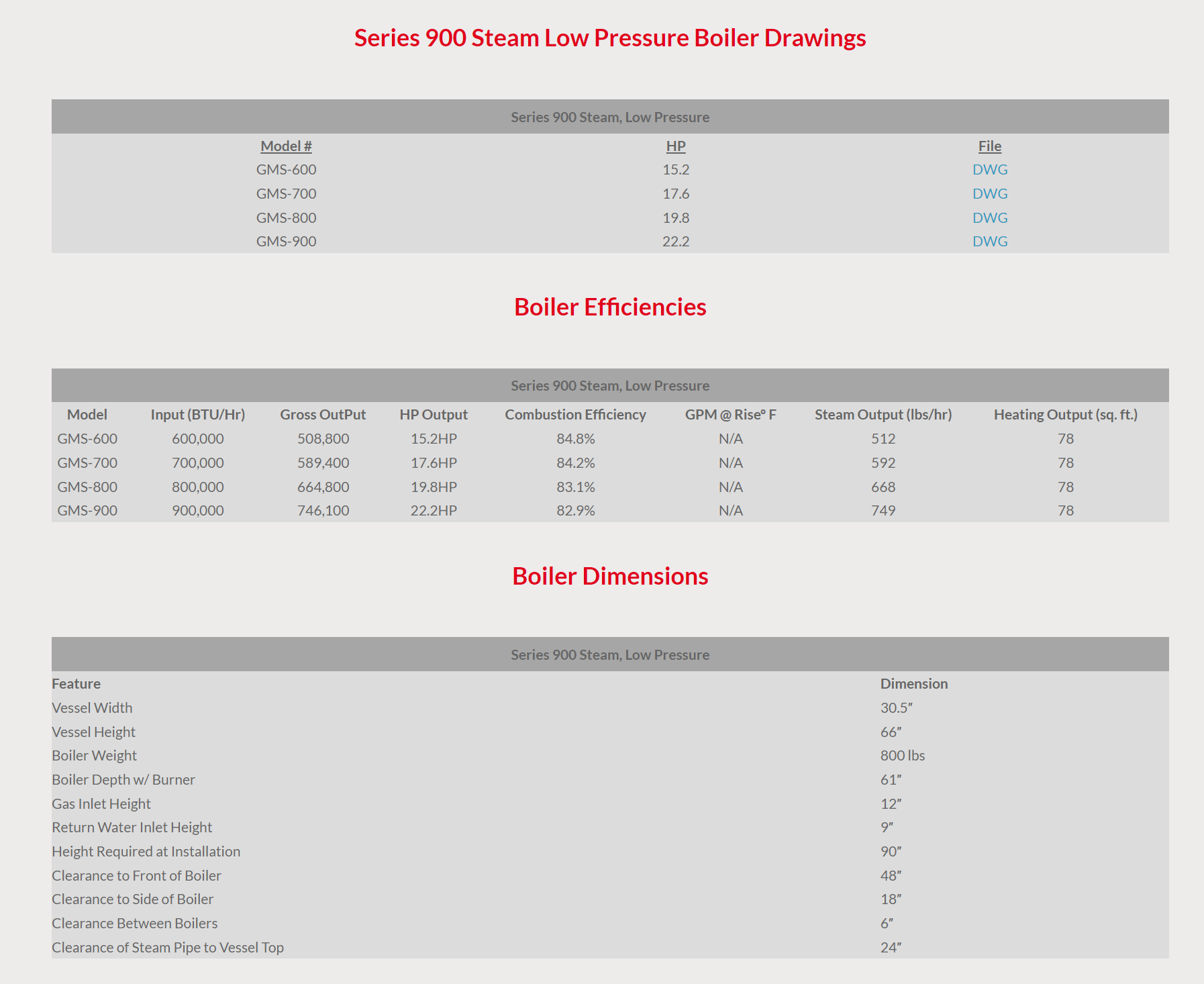

The Series 900 Steam Boiler is available with firing inputs from 600,000 Btu/hr to 900,000 Btu/hr. However, many millions of Btu’s can be delivered by creating an efficient, fully modular system of multiple vessels properly sequenced by a control panel.

Series 900 Steam Low Pressure Boiler can burn:
Natural Gas, Propane, #2 Oil, Dual Fuel

Not what you’re looking for? Check out our other boiler rental options.

Key Features

UL Listed Gas Trains and Control Systems.
Choice of Power Burners.
Main and Auxiliary Gas Valves
Air Flow Switch
Main Manual Leak Test Valve
Pressure Control
High-Limit With Manual Reset
5801-30 lb Pressure Gauge
Siphon Loops
15 lb Pressure Relief Valve
150 Water Level Control
Automatic Low Water Cutoff
Gauge Glass Assembly
Honeywell Aquastat Relay
Burner Control Relay
High Visibility Operating Light
1½” Diameter Firetubes of SA178-A Steel
Turbulators for Maximum Heat Transfer
Two Inches of Insulation With a Painted Steel Jacket

UL Listed Gas Trains and Control Systems.
Choice of Power Burners.
Main and Auxiliary Gas Valves
Air Flow Switch
Main Manual Leak Test Valve
Pressure Control
High-Limit With Manual Reset
5801-30 lb Pressure Gauge
Siphon Loops
15 lb Pressure Relief Valve
150 Water Level Control
Automatic Low Water Cutoff
Gauge Glass Assembly
Honeywell Aquastat Relay
Burner Control Relay
High Visibility Operating Light
1½” Diameter Firetubes of SA178-A Steel
Turbulators for Maximum Heat Transfer
Two Inches of Insulation With a Painted Steel Jacket.

Standard features include nationally known parts and controls that are available at most supply houses, allowing for quick and easy repair and maintenance, which can dramatically reduce down time.

Superior Boiler offers several options to customize your steam boiler. A job is not complete until the vessel has been properly equipped for the application.

Choice of burner manufacturers fired by natural gas, oil, propane, or dual fuel.
Fan-Damper relays
Barometric Dampers and Galvanized Tees
Clean-out openings and plugs
Microprocessor Control Panel for true lead-lag modulation
Lifting Lugs
Rail Legs

The Series 900 Steam Boiler is manufactured to exceed ASME Section IV standards and typically is used to provide operating pressure of up to 15 psi with nominal operating temperature of 218°F to 240°F. These vessels contain 37 vertical firetubes, each of which is 1½” diameter, each fitted with a high-efficiency turbulator for maximum heat transfer. The combustion chamber is fully water-backed, with burners that are UL listed. This boiler qualifies as a Category I gas appliance with industry standard controls wired to NEC specifications.

A well-made, heavy vessel is naturally a safer boiler. But Superior Boilers also have a firebox design that is completely backed by water, along with extra safety controls on the boiler that results in a very safe and secure package.
