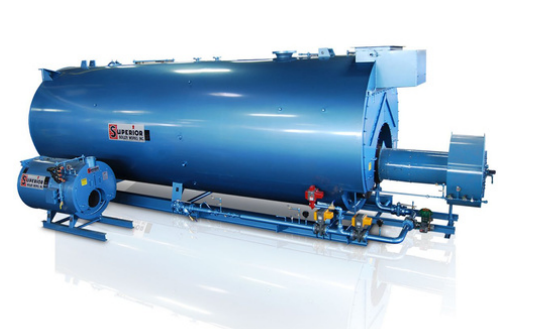

RT-350A

Connection Sizes

• STACK OUTLET: 20″ OD
• STEAM OUTLET: 6″ X 300#
• FLANGED
• HHW SUPPLY/RETURN: 6″ X 300#
• FLANGED
• NATURAL GAS: 2-1/2″ 150# FLANGED
• FUEL OIL SUPPLY/RETURN: 3/4″ NPT
• BLOWDOWN DRAIN: 4″ 150# FLANGED
• SYSTEM DRAIN: 1-1/2″ NPT
• ELECTRICAL: 2″ NPT
• CITY WATER SUPPLY: 2″ NPT

Dimensions

• DIMENSIONS: 40′ L X 8′ W X 13’6″ H
• SHIPPING WEIGHT: 53,100 LBS
• OPERATING WEIGHT: 63,650 LBS

Fuel Requirements

• FUEL INPUT (NG/OIL): 14.6
• MMBTU/HR
• NG FLOW: 1,465 – 14,645 CFH
• NG PRESSURE: 4.0 – 7.0PSIG
• #2 OIL FLOW: 13.0 – 104.6 GPH
• #2 OIL PRESSURE: USE ONBOARD OIL PUMP
